Stranded · Higher Strength

Akwaflex Plus 12 Strand

Akwaflex Plus 12S ropes are manufactured from a blend of high tenacity monofilament fibres with a higher concentration of polyester, offering greater strength and abrasion resistance than other combination ropes.

Easy to splice and inspect
High abrasion and UV resistance
High elasticity retention over nylon
Increased strength and durability over standard Akwaflex
Round profile for enhanced abrasion resistance and strength
Ideal for high strength applications such as stretchers or towlines

Enquire About This Product Back to Fibre Ropes

Specific Gravity1.08*

Melting Point160°C

Critical Temp.90°C

Elongation at Break15.5%

Floats / SinksSinks

UV ResistanceGood

Wet AbrasionExcellent

Dry AbrasionExcellent

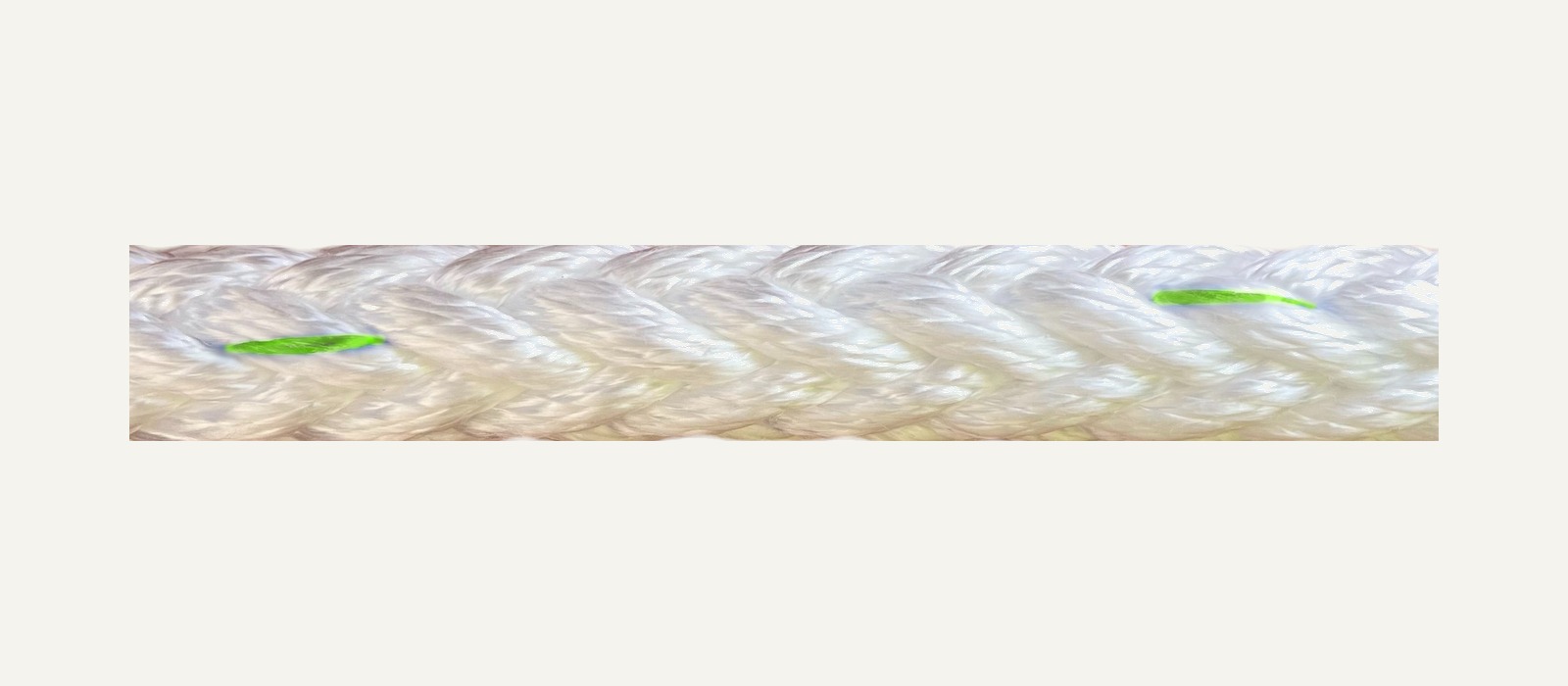

Its 12 strand construction offers higher strength and profile retention over 8 strand constructed ropes. Compared to standard polypropylene it will maintain flexibility and strength even when wet, offering the perfect balance between flexibility, durability and strength.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1 5/8″	40	5″	103	40.1	44.5
1 3/4″	44	5 1/2″	125	48.0	53.3
2″	48	6″	149	56.7	63.0
2 1/8″	52	6 1/2″	175	66.2	73.5
2 1/4″	56	7″	203	76.2	84.7
2 3/8″	60	7 1/2″	233	87.2	96.9
2 5/8″	64	8″	266	98.3	109.2
2 3/4″	68	8 1/2″	299	110.9	123.2
3″	72	9″	335	123.6	137.3
3 1/8″	76	9 1/2″	374	137.7	153.0
3 1/4″	80	10″	415	150.8	167.6
3 1/2″	84	10 1/2″	458	166.2	184.7
3 5/8″	88	11″	502	182.0	202.2
3 3/4″	92	11 1/4″	549	198.8	220.9
4″	96	12″	596	215.0	238.9
4 1/4″	104	13″	696	250.0	277.8
4 5/8″	112	14″	811	288.9	321.0
5″	120	15″	932	328.8	365.3

Other sizes available on request. Contact us to confirm current lead times and pricing.
