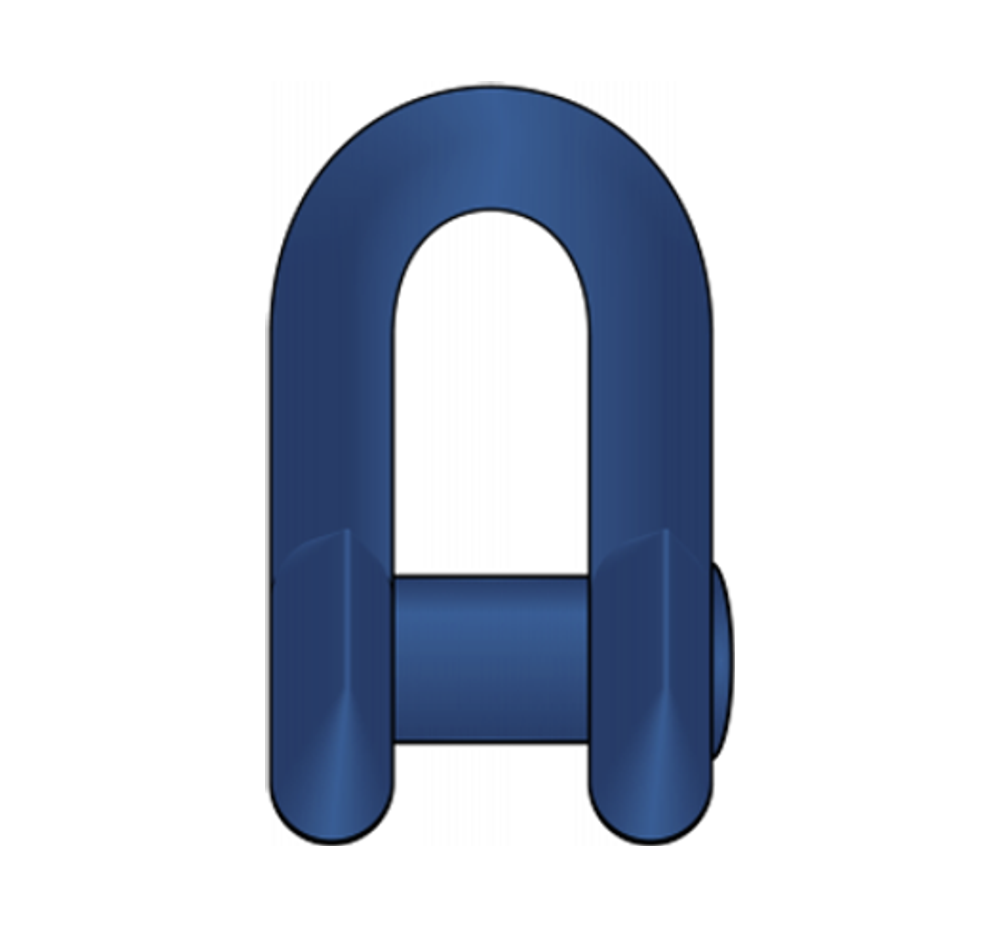

The Anchor Joining Shackle, commonly known as the end shackle, is generally used to connect the crown shackle of the anchor to the open end link of a swivel forerunner assembly. They are also commonly found as a connection in mooring systems.
The pin of the anchor shackle is oval in profile to prevent premature wear of the shackle pin and is secured in place with a tapered pin.
d = diameter
| Diameter (mm) | U2 Proof Load (Tonne-F) | U2 Break Load (Tonne-F) | U3 Proof Load (Tonne-F) | U3 Break Load (Tonne-F) | Weight (kg) |
|---|---|---|---|---|---|
| 12.5 | 6.73 | 9.38 | 9.38 | 13.46 | 1.34 |
| 14 | 8.36 | 11.83 | 11.83 | 16.83 | 1.5 |
| 16 | 10.91 | 15.30 | 15.30 | 22.03 | 1.6 |
| 17.5 | 12.95 | 18.25 | 18.25 | 26.10 | 2.0 |
| 19 | 15.30 | 21.52 | 21.52 | 30.69 | 2.6 |
| 20.5 | 17.85 | 24.88 | 24.88 | 35.59 | 3.2 |
| 22 | 20.39 | 28.55 | 28.55 | 40.89 | 4.1 |
| 24 | 24.17 | 33.85 | 33.85 | 48.54 | 5.2 |
| 26 | 28.35 | 39.67 | 39.67 | 56.70 | 6.7 |
| 28 | 32.73 | 45.79 | 45.79 | 65.47 | 8.2 |
| 30 | 37.53 | 52.41 | 52.41 | 74.95 | 10.0 |
| 32 | 42.52 | 59.45 | 59.45 | 84.94 | 12.0 |
| 34 | 47.72 | 66.79 | 66.79 | 95.55 | 15.0 |
| 36 | 53.33 | 74.64 | 74.64 | 107.07 | 17.0 |
| 38 | 59.25 | 82.80 | 82.80 | 118.29 | 20.0 |
| 40 | 65.26 | 91.26 | 91.26 | 130.52 | 23.0 |
| 42 | 71.69 | 100.03 | 100.03 | 142.76 | 28.0 |
| 44 | 78.42 | 110.13 | 110.13 | 157.04 | 31.5 |
| 46 | 85.35 | 119.31 | 119.31 | 171.31 | 36.0 |
| 48 | 92.59 | 129.50 | 129.50 | 184.57 | 41.0 |
| 50 | 100.03 | 139.70 | 139.70 | 199.86 | 47.0 |
| 52 | 108.09 | 150.92 | 150.92 | 215.16 | 52.5 |
| 54 | 116.25 | 162.13 | 162.13 | 231.48 | 60.0 |
| 56 | 124.41 | 174.37 | 174.37 | 247.79 | 64.0 |
| 58 | 131.54 | 184.57 | 184.57 | 265.13 | 71.0 |
| 60 | 140.72 | 197.82 | 197.82 | 282.46 | 78.0 |
| 62 | 149.90 | 210.06 | 210.06 | 299.80 | 86.0 |
| 64 | 159.08 | 223.32 | 223.32 | 319.17 | 95.0 |
| 66 | 169.27 | 235.55 | 235.55 | 336.51 | 103.0 |
| 68 | 178.45 | 147.86 | 249.83 | 356.90 | 114.0 |
| 70 | 187.63 | 263.09 | 263.09 | 376.28 | 125.0 |
| 73 | 202.92 | 284.50 | 284.50 | 406.87 | 141.0 |
| 76 | 219.24 | 306.93 | 306.93 | 438.48 | 152.0 |
| 78 | 230.46 | 322.23 | 322.23 | 458.87 | 171.0 |
| 81 | 245.75 | 344.66 | 344.66 | 491.50 | 192.0 |
| 84 | 263.09 | 368.12 | 368.12 | 526.17 | 214.0 |
| 87 | 280.42 | 392.59 | 392.59 | 560.84 | 236.0 |
| 90 | 297.76 | 417.06 | 417.06 | 595.51 | 265.0 |
| 92 | 309.99 | 434.40 | 434.40 | 619.99 | 285.0 |
| 95 | 329.37 | 459.89 | 459.89 | 656.70 | 305.0 |
| 97 | 340.59 | 477.23 | 477.23 | 682.19 | 335.0 |
| 100 | 359.96 | 503.74 | 503.74 | 719.92 | 375.0 |
| 102 | 373.22 | 522.09 | 522.09 | 746.43 | 400.0 |
| 105 | 392.59 | 549.63 | 549.63 | 785.18 | 415.0 |
| 107 | 405.85 | 567.98 | 567.98 | 811.69 | 435.0 |
| 111 | 433.38 | 605.71 | 605.71 | 864.72 | 475.0 |
| 114 | 452.75 | 635.28 | 635.28 | 906.53 | 525.0 |
| 117 | 474.17 | 663.84 | 663.84 | 948.34 | 575.0 |
| 120 | 494.56 | 694.43 | 694.43 | 991.16 | 622.0 |
| 122 | 509.86 | 713.80 | 713.80 | 1018.7 | 675.0 |
All dimensions are approximate. Additional sizes available upon request.
