Buoyancy

Boundary Floats

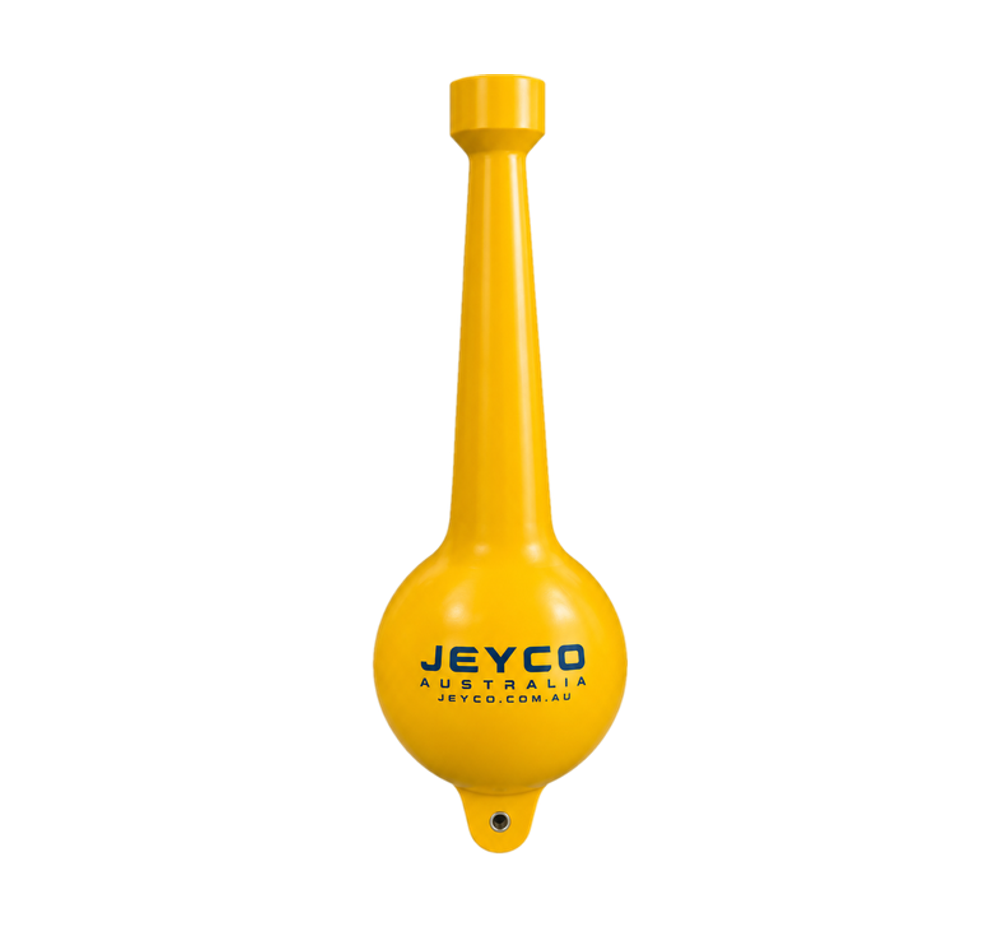

The Boundary Floats are a Western Australian designed and made product primarily used for boundary demarcation. Comprised of a perfectly round profile to reduce structural fatigue and a foam filled inner, the boundary floats are durable and built to last.

100% Western Australian made
Designed for the most severe weather conditions
Optional flat top for easy retrofit of nav aids / marine lanterns
Optional rounded top
Designed with the riser chain/rigging to act as ballast
Overall height 1.33m

Enquire About This Product Back to Buoyancy & Navigational Aids

The boundary floats are rota-moulded with either a round top or a flat top with stainless steel inserts allowing for the installation of solar marine lights. This fully sealed design is extremely durable and long lasting in any conditions.

Sizing & Specifications

Dimensions & Ratings

Round top (left) and flat top (right)

Part Number	Total Buoy Weight (Kg)	Reserve Buoyancy (Kg)	Sphere Reserve Buoyancy (Kg)	Shackle to Suit
AM-FLBDY	7	61	45	20mm Commercial Dee Shackle

Other sizes available on request. Contact us to confirm current lead times and pricing.
