Grade S

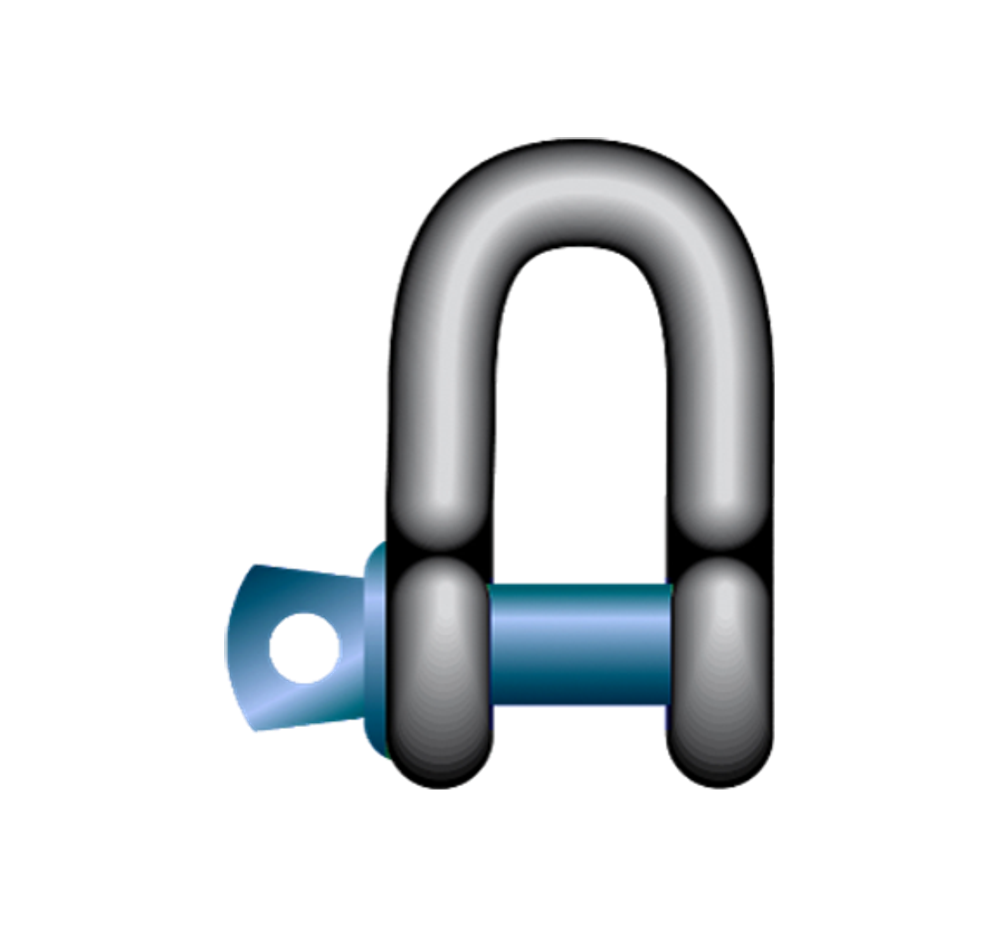

Grade S Safety Dee Screw Pin Shackle Galvanised
Galvanised dee (D-shaped) shackles from the Grade 'S' range fitted with a screw pin for quick assembly and disassembly in the field, rated from 0.5 to 55 tonnes WLL.
Galvanised dee (D-shaped) shackles from the Grade 'S' range fitted with a screw pin for quick assembly and disassembly in the field, rated from 0.5 to 55 tonnes WLL.
Ref. diagram for dimensions
| WLL (Te) | D Diameter (mm) | A (mm) | D1 (mm) | F (mm) | G (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 0.5 | 6 | 12 | 8 | 17 | 22 | 0.5 |
| 0.75 | 8 | 13 | 10 | 21 | 26 | 0.75 |
| 1 | 10 | 17 | 11 | 25 | 32 | 1 |
| 1.5 | 11 | 18 | 13 | 27 | 37 | 1.5 |
| 2 | 13 | 21 | 16 | 33 | 41 | 2 |
| 3.2 | 16 | 27 | 19 | 40 | 51 | 3.2 |
| 4.7 | 19 | 32 | 22 | 48 | 60 | 4.7 |
| 6.5 | 22 | 37 | 25 | 54 | 71 | 6.5 |
| 8.5 | 25 | 43 | 29 | 60 | 81 | 8.5 |
| 9.5 | 29 | 46 | 32 | 67 | 90 | 9.5 |
| 12 | 32 | 52 | 35 | 76 | 100 | 12 |
| 13.5 | 35 | 57 | 38 | 84 | 113 | 13.5 |
| 17 | 38 | 60 | 44 | 92 | 124 | 17 |
| 25 | 44 | 73 | 51 | 110 | 146 | 25 |
| 35 | 51 | 83 | 57 | 127 | 171 | 35 |
| 42.5 | 57 | 95 | 63 | 143 | 181 | 42.5 |
| 55 | 63 | 105 | 70 | 152 | 203 | 55 |
All dimensions are approximate.
