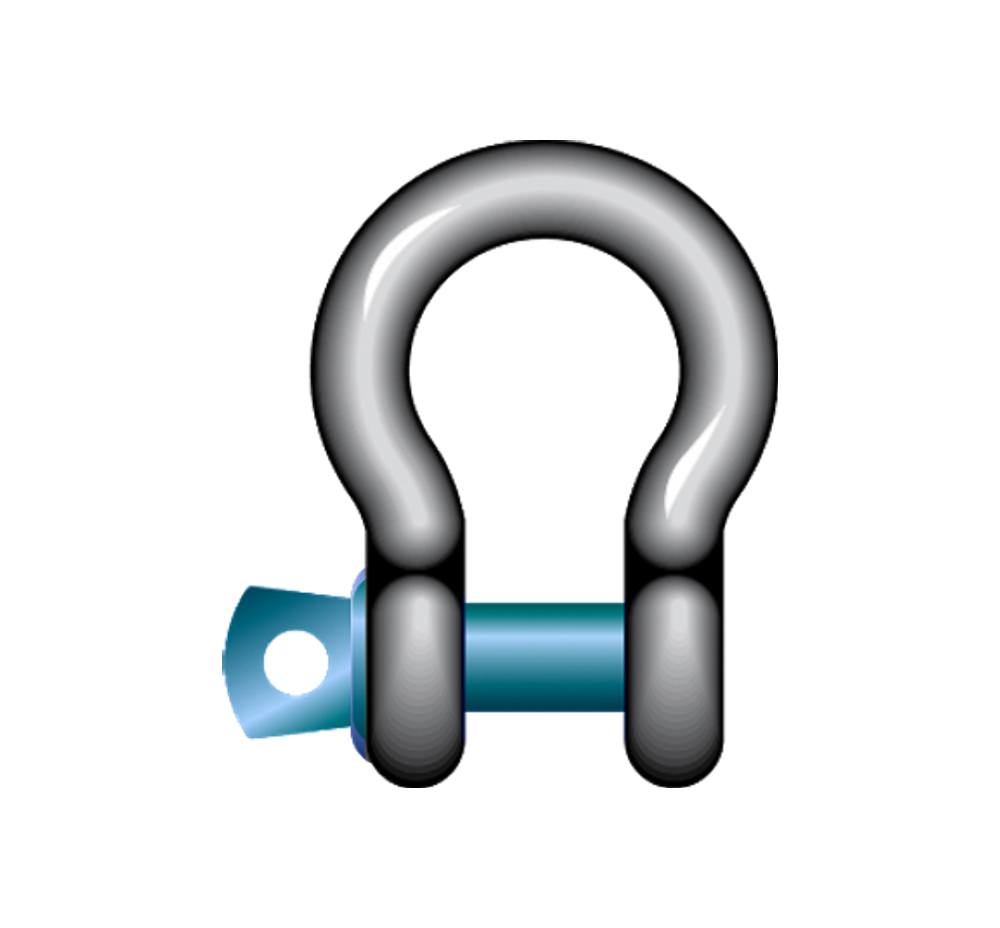

Grade S Screw Pin Bow Shackle Galvanised
Galvanised bow shackles from the Grade 'S' range fitted with a screw pin for quick assembly and disassembly in the field, rated from 0.33 to 55 tonnes WLL.
Galvanised bow shackles from the Grade 'S' range fitted with a screw pin for quick assembly and disassembly in the field, rated from 0.33 to 55 tonnes WLL.
Ref. diagram for dimensions
| WLL (Te) | d Diameter (mm) | B (mm) | D (mm) | E (mm) | L (mm) | W (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 0.33 | 5 | 15 | 6 | 14 | 22 | 10 | 0.02 |
| 0.5 | 6 | 20 | 8 | 17 | 29 | 12 | 0.05 |
| 0.75 | 8 | 21 | 10 | 21 | 31 | 13 | 0.09 |
| 1 | 10 | 26 | 11 | 25 | 37 | 17 | 0.14 |
| 1.5 | 11 | 29 | 13 | 27 | 43 | 18 | 0.17 |
| 2 | 13 | 33 | 16 | 33 | 48 | 21 | 0.29 |
| 3.2 | 16 | 43 | 19 | 40 | 61 | 27 | 0.63 |
| 4.7 | 19 | 51 | 22 | 48 | 72 | 32 | 1.02 |
| 6.5 | 22 | 58 | 25 | 54 | 84 | 37 | 1.53 |
| 8.5 | 25 | 68 | 29 | 60 | 95 | 43 | 2.41 |
| 9.5 | 29 | 74 | 32 | 67 | 108 | 46 | 3.09 |
| 12 | 32 | 83 | 35 | 76 | 119 | 52 | 4.31 |
| 13.5 | 35 | 92 | 38 | 84 | 133 | 57 | 6.01 |
| 17 | 38 | 98 | 44 | 92 | 146 | 60 | 8.03 |
| 25 | 44 | 127 | 51 | 110 | 178 | 73 | 13.79 |
| 35 | 51 | 146 | 57 | 127 | 197 | 83 | 20.42 |
| 42.5 | 57 | 160 | 63 | 143 | 222 | 95 | 26.06 |
| 55 | 63 | 184 | 70 | 152 | 267 | 105 | 38.8 |
All dimensions are approximate.
