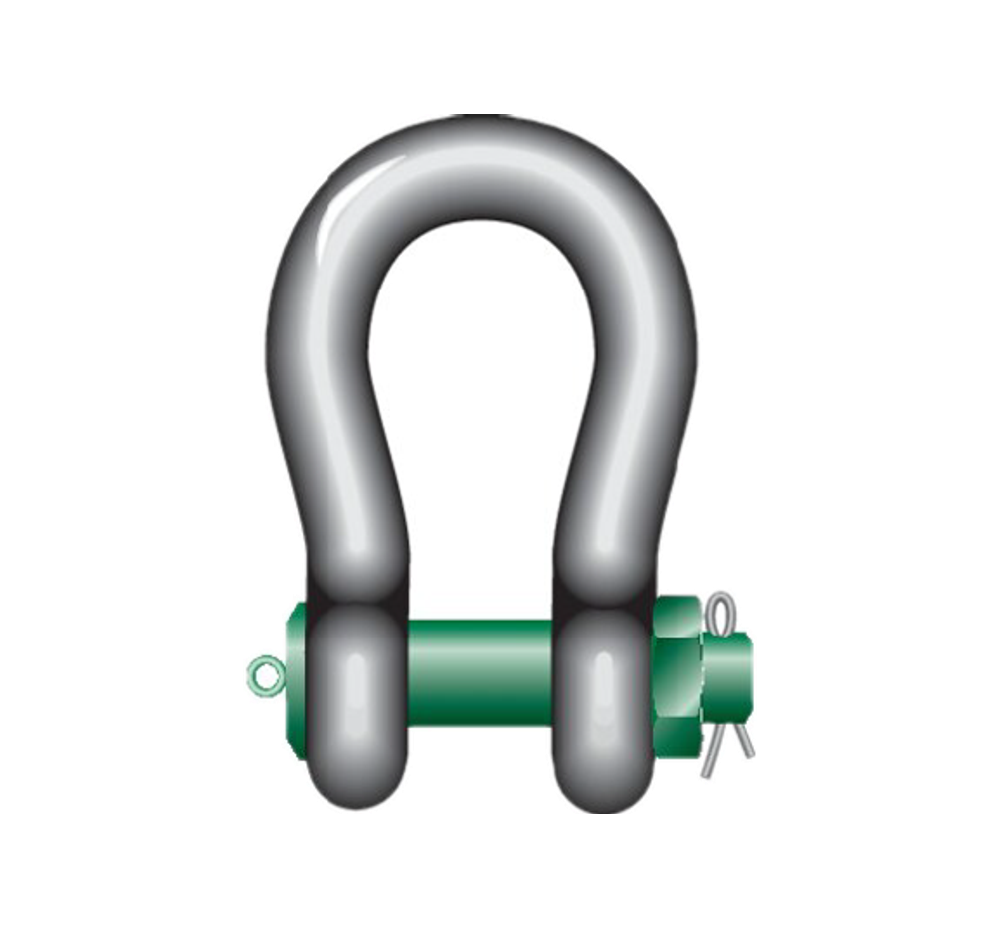

Green Pin Heavy Duty Bow Shackles

Sizing & Specifications

Dimensions & Ratings

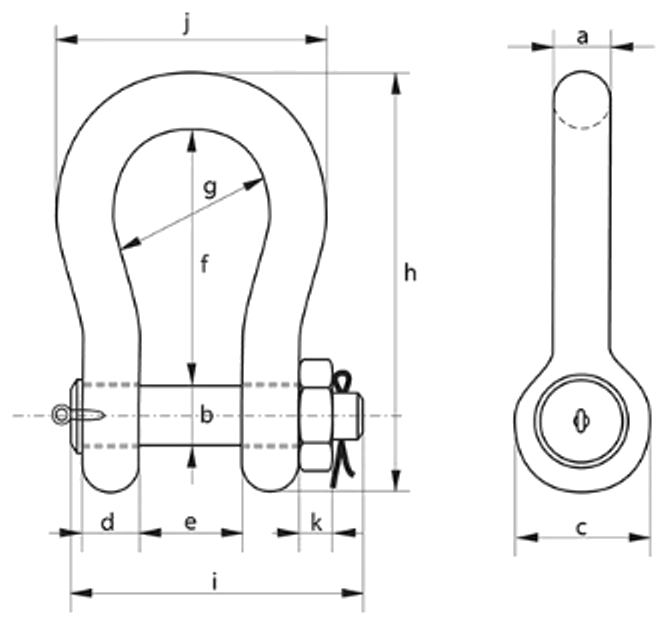

green pin heavy duty bow shackles dimension diagram

Ref. diagram for a to k

WLL (ton)	a (mm)	b (mm)	c (mm)	d (mm)	e (mm)	f (mm)	g (mm)	h (mm)	i (mm)	j (mm)	k (mm)	Net weight (kg)	Weight shackle pin (kg)
120	95	95	204	95	147	400	238	644	453	428	50	116	28.12
150	105	108	235	105	169	410	275	686	496	485	50	161	39.15
200	120	130	270	120	179	513	290	833	564	530	71	252	69.15
250	130	140	284	130	205	554	305	896	614	565	71	317	85.5
300	140	150	308	140	205	618	305	987	644	585	81	386	102
400	170	175	376	164	231	669	325	1115	698	665	70	620	126.66
500	180	185	398	164	256	719	350	1191	728	710	70	720	147.51
600	200	205	444	189	282	719	375	1244	810	775	70	975	204.43
700	210	215	454	204	308	718	400	1263	870	820	70	980	241.66
800	210	220	464	204	308	718	400	1270	870	820	70	1100	253.47
900	220	230	485	215	328	718	420	1296	920	860	70	1280	292.09
1000	240	240	515	215	349	718	420	1336	940	900	70	1460	325.46
1250	260	270	585	230	369	768	450	1456	1025	970	70	1990	449.98
1500	280	290	625	230	369	818	450	1556	1025	1010	70	2400	519.27

a: diameter body · b: diameter pin · c: diameter eye · d: width eye · e: width inside · f: length inside · g: width bow · h: length · i: length bolt · j: width · k: thickness nut

Other sizes available on request. Contact us to confirm current lead times and pricing.
