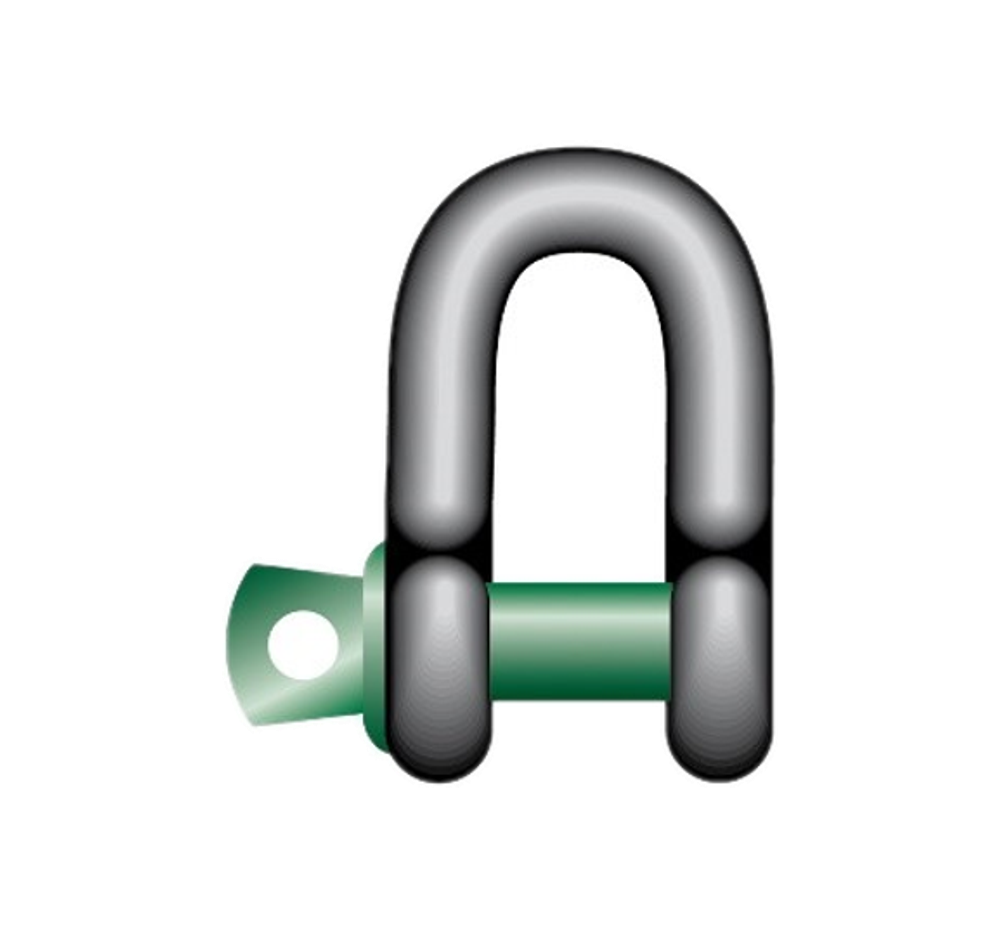

Green Pin Screw Pin Dee Shackles
Dee (D-shaped) shackles from the Green Pin range fitted with a screw pin for quick assembly and disassembly in the field, rated from 0.33 to 55 tonnes WLL.
Dee (D-shaped) shackles from the Green Pin range fitted with a screw pin for quick assembly and disassembly in the field, rated from 0.33 to 55 tonnes WLL.
Ref. diagram for a to h
| WLL (ton) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | Net weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 0.33 | 5 | 6 | 12 | 5 | 9.5 | 19 | 33 | 29.5 | 0.02 |
| 0.5 | 7 | 8 | 16 | 7 | 12 | 22.5 | 41.5 | 38 | 0.05 |
| 0.75 | 9 | 10 | 20 | 9 | 13.5 | 27 | 51 | 46.5 | 0.09 |
| 1 | 10 | 11 | 23 | 10 | 17 | 32 | 59 | 54 | 0.14 |
| 1.5 | 11 | 13 | 25 | 11 | 19 | 37 | 67 | 59.5 | 0.19 |
| 2 | 13.5 | 16 | 34 | 13 | 22 | 43 | 82 | 73 | 0.32 |
| 3.25 | 16 | 19 | 40 | 16 | 27 | 51 | 97 | 89 | 0.54 |
| 4.78 | 19 | 22 | 46 | 19 | 31 | 59 | 112 | 103 | 0.87 |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 73 | 134 | 119 | 1.34 |
| 8.5 | 25 | 28 | 59 | 25 | 43 | 85 | 154 | 137 | 2.08 |
| 9.5 | 28 | 32 | 67 | 28 | 47 | 90 | 168 | 153 | 2.77 |
| 12 | 32 | 35 | 73 | 32 | 51 | 94 | 180 | 170 | 3.72 |
| 13.5 | 35 | 38 | 79 | 35 | 57 | 115 | 209 | 186 | 5.44 |
| 17 | 38 | 42 | 88 | 38 | 60 | 127 | 230 | 203 | 6.85 |
| 25 | 45 | 50 | 104 | 45 | 74 | 149 | 271 | 243 | 11.5 |
| 35 | 50 | 57 | 112 | 50 | 83 | 171 | 306 | 272 | 16.9 |
| 42.5 | 57 | 65 | 132 | 57 | 95 | 190 | 346 | 310 | 24.6 |
| 55 | 65 | 70 | 145 | 65 | 105 | 203 | 376 | 344 | 32.7 |
a: diameter bow · b: diameter pin · c: diameter eye · d: width eye · e: width inside · f: length inside · g: length · h: length bolt
Other sizes available on request. Contact us to confirm current lead times and pricing.
