Green Pin
Green Pin Sling Shackle

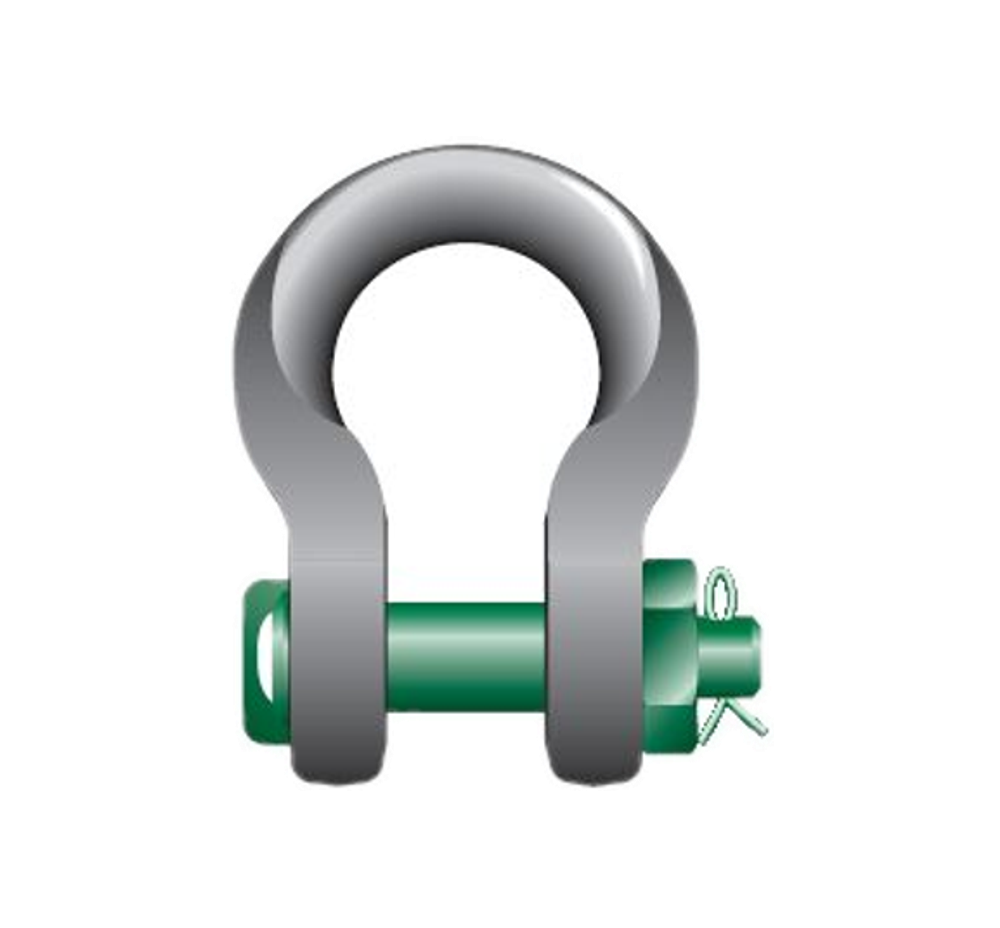

A wide-bodied sling shackle from the Green Pin range, designed for use with wire rope slings and grommets, rated from 7 to 800 tonnes WLL.
A wide-bodied sling shackle from the Green Pin range, designed for use with wire rope slings and grommets, rated from 7 to 800 tonnes WLL.
Ref. diagram for a to l
| WLL (ton) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | g (mm) | h (mm) | i (mm) | j (mm) | k (mm) | l (mm) | Net weight (kg) | Weight shackle pin (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 22 | 22 | 46 | 19 | 32 | 96 | 64 | 153 | 115 | 110 | 19 | 41 | 1.97 | 0.99 |
| 12.5 | 28 | 28 | 61 | 25 | 44 | 120 | 82 | 197 | 151 | 146 | 24 | 54 | 4.27 | 1.82 |
| 18 | 35 | 35 | 69 | 30 | 54 | 148 | 102 | 239 | 171 | 180 | 29 | 64 | 6.85 | 2.35 |
| 30 | 40 | 42 | 90 | 35 | 69 | 165 | 126 | 279 | 207 | 200 | 34 | 79 | 12.5 | 4.23 |
| 40 | 55 | 51 | 109 | 45 | 84 | 199 | 140 | 331 | 252 | 235 | 38 | 97 | 20.3 | 4.32 |
| 55 | 60 | 57 | 115 | 55 | 90 | 240 | 160 | 389 | 294 | 270 | 45 | 100 | 30.4 | 4.6 |
| 75 | 68 | 70 | 126 | 54 | 110 | 290 | 185 | 473 | 317 | 331 | 40 | 120 | 49 | 11.39 |
| 125 | 85 | 80 | 156 | 85 | 137 | 366 | 220 | 583 | 413 | 390 | 40 | 150 | 95 | 18.59 |
| 150 | 94 | 95 | 181 | 89 | 147 | 391 | 253 | 648 | 445 | 449 | 50 | 170 | 125 | 27.25 |
| 200 | 110 | 105 | 201 | 100 | 158 | 481 | 280 | 759 | 480 | 500 | 50 | 205 | 190 | 36.87 |
| 250 | 126 | 120 | 229 | 110 | 179 | 542 | 300 | 860 | 535 | 552 | 60 | 240 | 264 | 54.3 |
| 300 | 136 | 134 | 246 | 134 | 195 | 601 | 350 | 946 | 590 | 620 | 70 | 265 | 360 | 79.4 |
| 400 | 160 | 160 | 295 | 145 | 231 | 576 | 370 | 995 | 687 | 710 | 80 | 320 | 583 | 109.65 |
| 500 | 170 | 180 | 330 | 160 | 263 | 681 | 450 | 1161 | 762 | 850 | 90 | 340 | 862 | 152.78 |
| 600 | 190 | 200 | 360 | 170 | 289 | 741 | 490 | 1264 | 827 | 930 | 100 | 370 | 1134 | 204.79 |
| 700 | 200 | 215 | 392 | 190 | 315 | 751 | 540 | 1284 | 879 | 901 | 100 | 400 | 1360 | 255.54 |
| 800 | 218 | 230 | 420 | 200 | 342 | 851 | 554 | 1426 | 942 | 947 | 110 | 420 | 1680 | 310.72 |
a: diameter body · b: diameter pin · c: diameter eye · d: width eye · e: width inside · f: length inside · g: width bow · h: length · i: length bolt · j: width · k: thickness nut · l: bearing surface
Other sizes available on request. Contact us to confirm current lead times and pricing.
Tell us what you need and our team can assist with product selection, specifications & supply.
