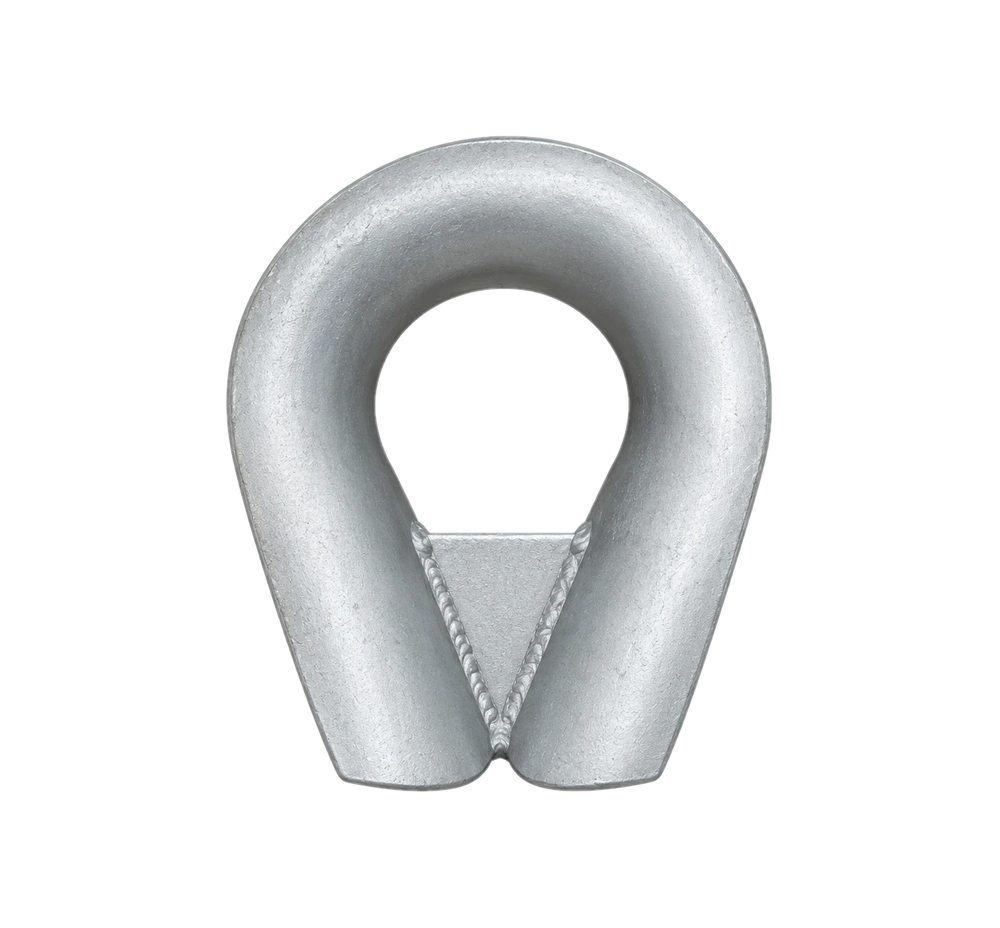

HD Gusseted Fibre Rope Thimble
A gusseted variant of Jeyco's hot dip galvanised fibre rope thimble range, sized to suit rope from 6″ to 14″.
A gusseted variant of Jeyco's hot dip galvanised fibre rope thimble range, sized to suit rope from 6″ to 14″.
Ref. diagram for A to H
| Size (Inch) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6″ | 152 | 120 | 75 | 115 | 7 | 24 | 48 | 40 | 1.7 |
| 7″ | 178 | 140 | 85 | 140 | 7 | 28 | 56 | 55 | 2.4 |
| 8″ | 203 | 160 | 105 | 160 | 8 | 32 | 64 | 55 | 3.3 |
| 9″ | 229 | 180 | 110 | 175 | 10 | 36 | 72 | 65 | 5.3 |
| 10″ | 254 | 200 | 120 | 190 | 10 | 40 | 80 | 65 | 6.2 |
| 11″ | 279 | 220 | 145 | 210 | 12 | 45 | 88 | 70 | 9.6 |
| 12″ | 305 | 245 | 150 | 230 | 14 | 51 | 102 | 80 | 13.9 |
| 14″ | 356 | 300 | 170 | 290 | 14 | 58 | 115 | 120 | 18.1 |
Other sizes available on request. Contact us to confirm current lead times and pricing.
