HMPE/PES · PES Overbraid

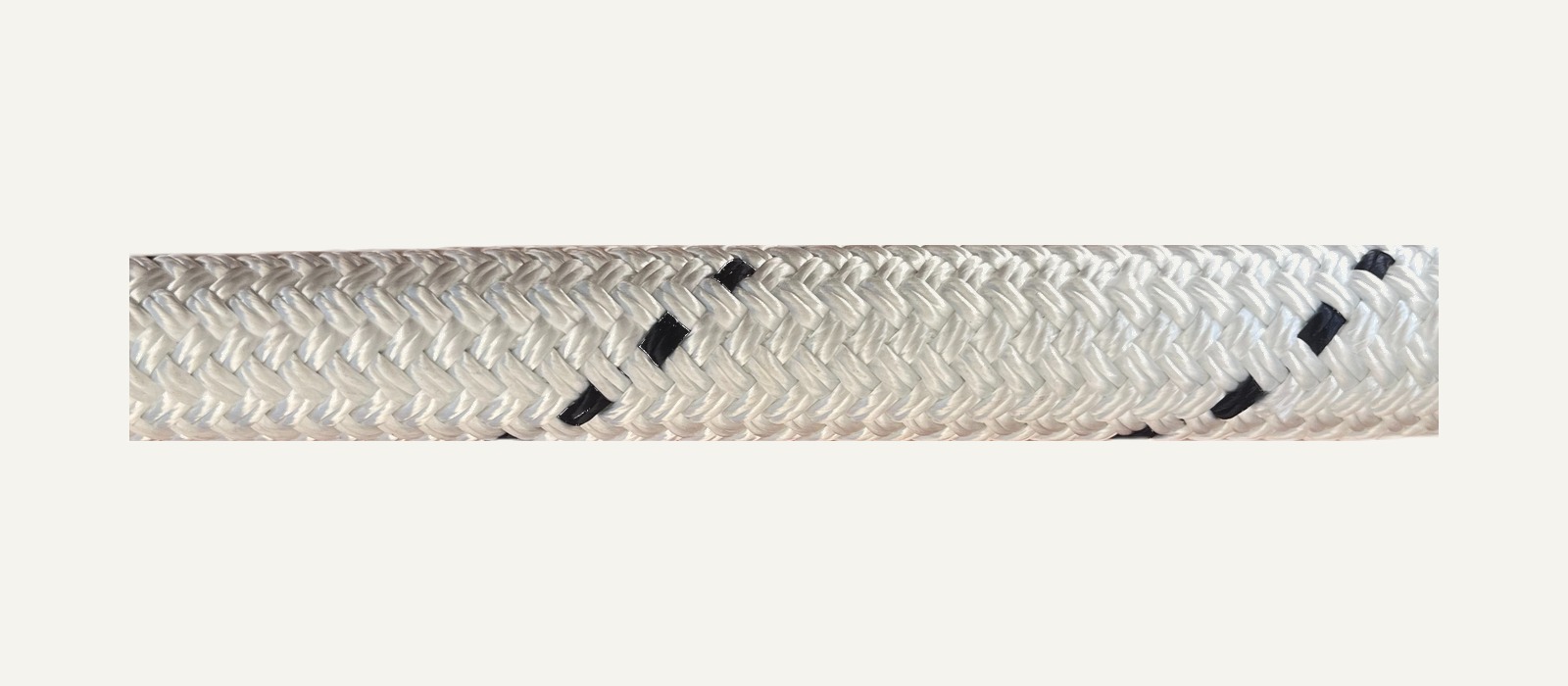

Jeycom Double Braid

Jeycom is manufactured from High Modulus Polyethylene (HMPE) and Polyester Overbraid, designed for high load applications where exceptionally low weight and flexibility are required.

High strength to weight ratio
Additional PES overbraid for superior protection and heat resistance
Flexible & resistant to kinking
High UV & chemical resistance
Low elongation & creep
Polyester increases heat management
Round profile suited to winching applications

Enquire About This Product Back to Fibre Ropes

Jeycom has a specially braided polyester cover to achieve maximum durability in harsh environments, whilst not compromising on strength. Jeycom with its tightly overbraided PES jacket not only protects the rope core, it also promotes the round profile of the rope to be maintained for compliance with winch drums and storage units.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1/4″	6	3/4″	3.2	1.3	1.7
5/16″	8	15/16″	6.1	3.1	3.4
3/8″	9	1 1/8″	6.5	4.3	4.8
7/16″	11	1 1/4″	9.0	6.6	7.3
1/2″	12	1 1/2″	11	8.4	9.2
9/16	14	1 3/4″	15	10.9	12.0
5/8″	16	2″	18	15.3	17.0
11/16″	17	2 1/8″	22	17.9	19.9
3/4″	18	2 1/4″	23	19.9	20.9
13/16″	20	2 1/2″	27	27.0	30.0
7/8″	22	2 3/4″	32	31.3	34.7
1″	24	3″	35	40.7	45.3
1 1/16″	26	3 1/4″	43	46.9	52.2
1 1/8″	28	3 1/2″	50	55.1	61.3
1 1/4″	30	3 3/4″	56	65.2	72.5
1 5/16″	32	4″	65	76.0	84.4
1 1/2″	36	4 1/2″	82	82.4	91.6
1 5/8″	40	5″	97	94.9	105.5
1 3/4″	44	5 1/2″	122	106.6	118.5
2″	48	6″	140	130.5	145.0
2 1/16″	50	6 1/4″	160	157.0	174.0
2 1/4″	56	7″	195	167.4	186.0
2 9/16″	62	7 3/4″	238	200.7	223.0

Other sizes available on request. Contact us to confirm current lead times and pricing.
