HMPE Rope · Cost Efficient

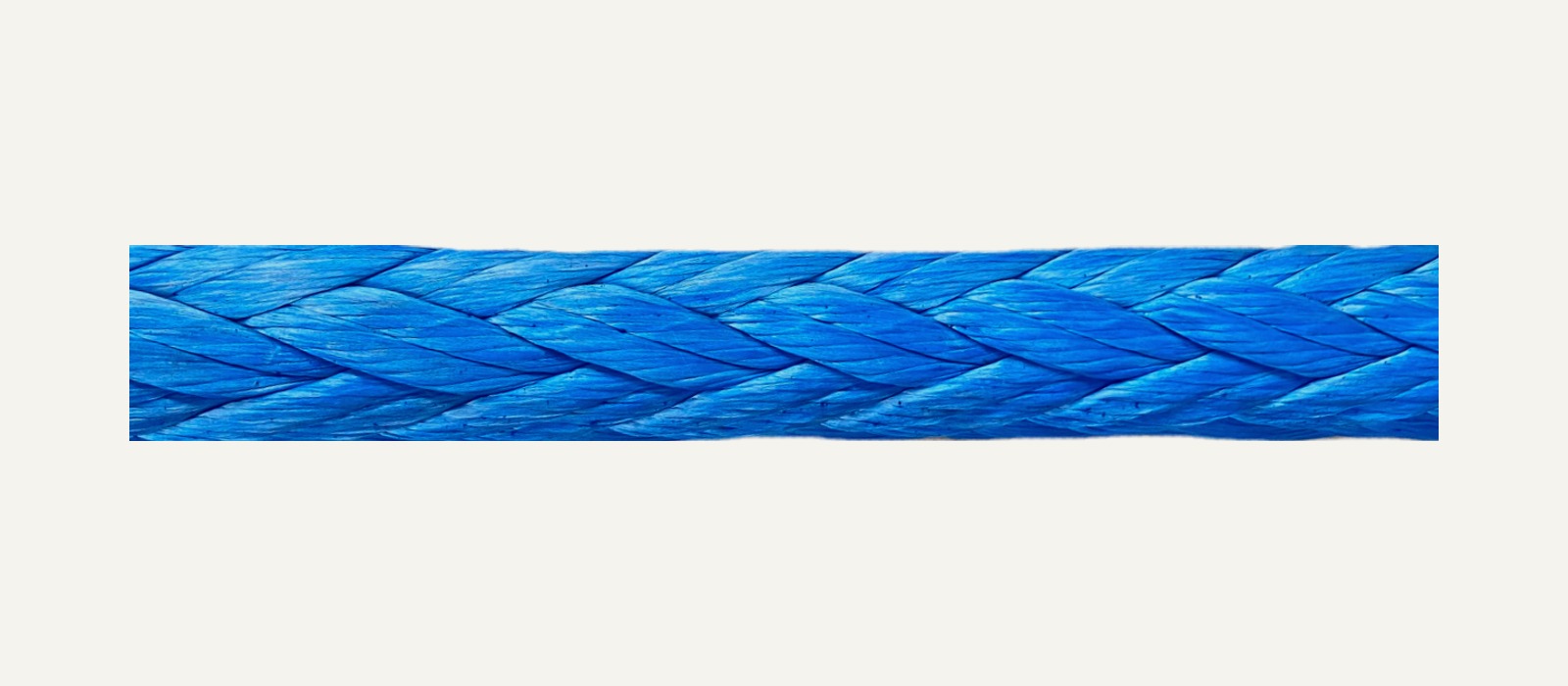

Jeyflex 12 Strand HMPE

Jeyflex 12 is manufactured from High Modulus Polyethylene (HMPE), designed to meet the need for high load applications where exceptionally low weight and flexibility are required in a cost driven environment.

Highest strength to weight ratio of any fibre
Low creep
High chemical resistance
Very low elongation
Safer than wire
Easy to splice
Excellent durability

Enquire About This Product Back to Fibre Ropes

Specific Gravity.98*

Melting Point150°C

Critical Temp.70°C

Elongation at Break3.5%

Coefficient of Friction0.09-0.12*

Floats / SinksFloats

UV ResistanceModerate

Wet AbrasionSuperior

Dry AbrasionSuperior

Jeyflex has a specially formulated coating system to maintain flexibility for ease of handling and inspections, whilst not compromising on strength or durability. Jeyflex is resistant to kinking, maintains strength around tight bend radius and has low recoil making it safer than traditional steel rigging products.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1/8″	3	3/8″	1.1	1.3	1.4
5/32″	4	15/32″	1.7	2.2	2.4
3/16″	5	9/16″	2.4	3.1	3.4
1/4″	6	3/4″	3	4.3	4.8
5/16″	8	15/16″	4.1	6.6	7.3
3/8″ -	9	1 1/8″ -	4.7	8.4	9.3
3/8″ +	10	1 1/8″ +	5	9.7	10.8
7/16″	11	1 1/4″	7	10.9	12.1
1/2″	12	1 1/2″	8	15.3	17.0
9/16	14	1 3/4″	11	17.9	19.9
5/8″-	15	2″-	12	20.0	22.2
5/8″+	16	2″+	14	21.2	23.5
11/16″	17	2 1/8″	16	27.0	30.0
3/4″	18	2 1/4″	18	31.3	34.7
13/16″	20	2 1/2″	22	40.8	45.3
7/8″	22	2 3/4″	26	47.0	52.2
1″	24	3″	31	55.2	61.3
1 1/16″	26	3 1/4″	37	65.3	72.5
1 1/8″	28	3 1/2″	43	76.0	84.4
1 1/4″	30	3 3/4″	49	82.5	91.6
1 5/16″	32	4″	56	84.6	93.9
1 1/2″	36	4 1/2″	71	106.8	118.5
1 9/16″	38	4 3/4″	79	118.0	131.0

Other sizes available on request. Contact us to confirm current lead times and pricing.
