HMPE/PES · High Friction

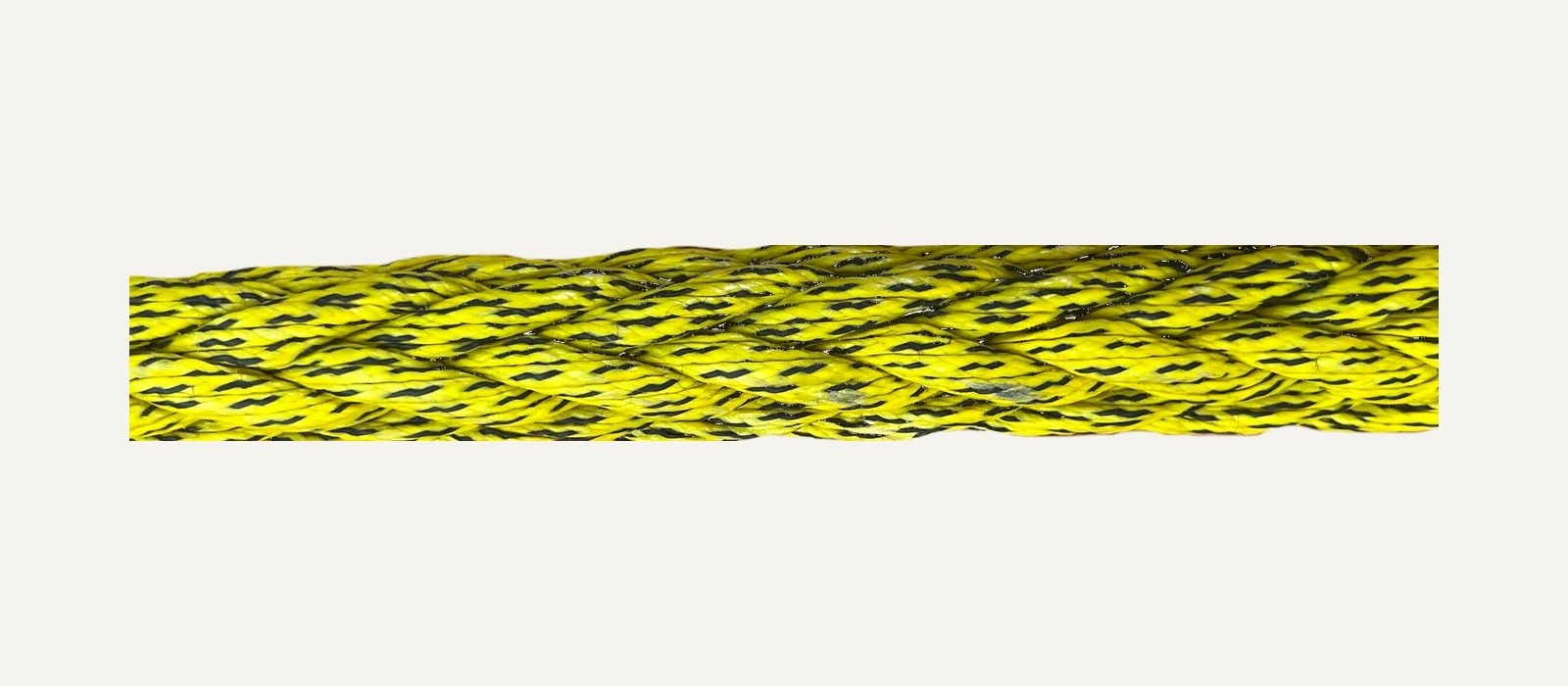

Jeymoor 12 Strand HMPE/PES

Jeymoor 12 is manufactured by combining High Modulus Polyethylene (HMPE) and Spun Polyester, designed to have a higher co-efficient of friction than standard HMPE ropes.

High strength to weight ratio
Floats
Flexible & resistant to kinking
High UV & chemical resistance
Easy to splice
Excellent durability
Low elongation & creep
Polyester can increase heat management

Enquire About This Product Back to Fibre Ropes

This is critical when using Jeymoor for mooring applications such as turning up on bollards, bitts or capstans.

The combination of HMPE and Spun Polyester provides better abrasion resistance and handles friction far better.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
3/4″	18	2 1/4″	19.4	20.5	22.5
7/8″	22	2 3/4″	29.0	32.1	35.3
1″	24	3″	34.6	37.5	41.3
1 1/8″	28	3 1/2″	47.0	50.2	55.1
1 1/4″	30	3 3/4″	54.0	56.2	61.8
1 5/16″	32	4″	61.4	57.8	63.5
1 3/8″	34	4 1/8″	69.4	64.9	71.3
1 1/2″	36	4 1/2″	77.8	72.9	80.1
1 5/8″	40	5″	96.0	89.5	98.3
1 3/4″	44	5 1/2″	116	107.2	117.8
2″	48	6″	138	131.8	144.8
2 1/8″	52	6 1/2″	162	146.4	160.8
2 1/4″	56	7″	188	167.5	184.0
2 1/2″	60	7 1/2″	216	195.1	214.4
2 5/8″	64	8″	246	233.0	256.0
2 3/4″	68	8 1/2″	277	262.1	288.0
3″	72	9″	311	291.3	320.0
3 1/4″	80	10″	384	364.0	400.0
3 5/8″	88	11″	465	436.9	480.0
4″	96	12″	553	517.0	568.0
4 1/4″	104	13″	649	618.9	680.0

Other sizes available on request. Contact us to confirm current lead times and pricing.
