HMPE Rope · Class Cert.

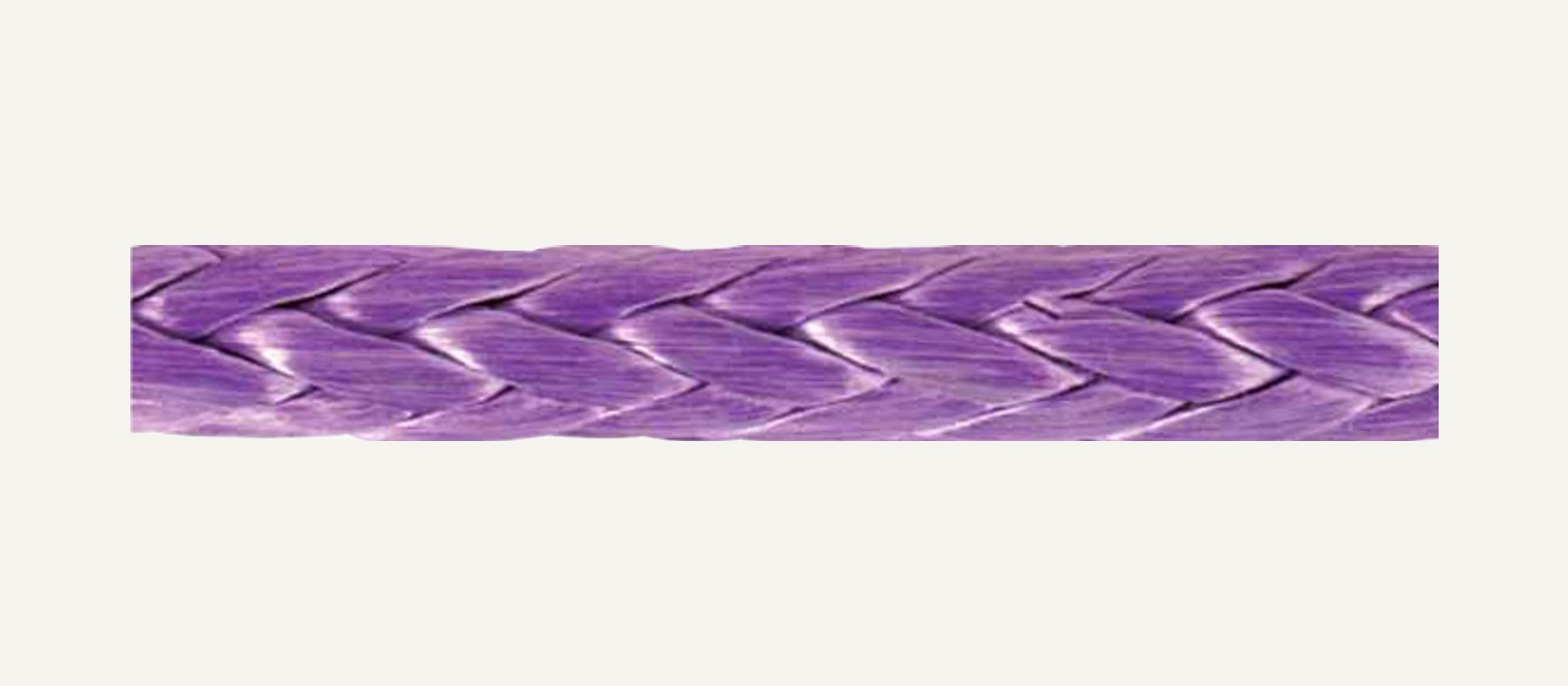

Plasma 12 Strand HMPE

Plasma 12 strand is the highest strength synthetic rope available, manufactured from High Modulus Polyethylene (HMPE) enhanced by a patented recrystallization process. It's especially effective in medium to large diameters, where strengths run over 50% higher and creep is significantly less than other HMPE alternatives.

Highest strength to weight ratio of any fibre
Low creep
High UV & chemical resistance
Very low elongation
Safer than wire
Easy to splice
Excellent durability
DNV & ABS class type approval

Enquire About This Product Back to HMPE Ropes

Specific Gravity.98*

Melting Point140°C

Critical Temp.65°C

Elongation at Break3%-4%

Coefficient of Friction0.09-0.12*

Floats / SinksFloats

UV ResistanceGood

Wet AbrasionSuperior

Dry AbrasionSuperior

Plasma 12 strand is the highest strength synthetic rope available. Plasma 12 strand is manufactured from High Modulus Polyethylene (HMPE) that has been enhanced by a patented recrystallization process. This process is especially effective in medium to large diameter ropes where strengths are over 50% higher and creep is significantly less than that of other HMPE alternatives.

Plasma 12 strand is delivered standard with a polyurethane finish and is easily spliced using a simple lockstitch type splice, 4-3-2 or 5-4-3 Tuck Splice. Its soft, torque free braided construction provides easy handling.

Plasma rope has the added advantage of DNV and ABS class type approval throughout its range.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Nominal Diameters & Strength Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ. (Inches)	Approx. Weight (Kg/100m)	Min. Tensile Strength Spliced (Te)	Min. Tensile Strength ISO Unspliced (Te)
0.04″	1	0.12	0.1	0.1	0.13
0.05″	1.25	0.15	0.1	0.2	0.20
0.06″	1.5	0.18	0.1	0.2	0.23
0.07″	1.75	0.21	0.2	0.3	0.38
0.1″	2.5	0.3	0.4	0.6	0.7
1/8″	3	3/8″	0.8	1.3	1.4
3/16″	5	9/16″	1.7	2.5	2.8
1/4″	6	3/4″	2.4	3.6	4.0
5/16″	8	15/16″	3.7	5.3	5.9
3/8″	9	1 1/8″	5.5	7.9	8.8
7/16″	11	1 1/4″	6.3	9.5	10.6
1/2″	12	1 1/2″	9.5	14.2	15.8
9/16″	14	1 3/4″	11.8	17.2	19.1
5/8″	16	2″	15.8	23.3	25.9
3/4″	18	2 1/4″	19.8	31.1	34.6
13/16″	20	2 1/2″	23.7	33.6	37.2
7/8″	22	2 3/4″	29.2	42.0	46.7
1″	24	3″	34.8	49.9	55.4
1 1/16″	26	3 1/4″	40.9	58.6	65.1
1 1/8″	28	3 1/2″	47.5	66.7	74.1
1 1/4″	30	3 3/4″	53.9	74.9	83.1
1 5/16″	32	4″	62.1	88.9	98.8
1 1/2″	36	4 1/2″	76.9	100.3	111.3

Other diameters available on request. Contact us to confirm current lead times and pricing.
