HMPE Rope · Low Friction

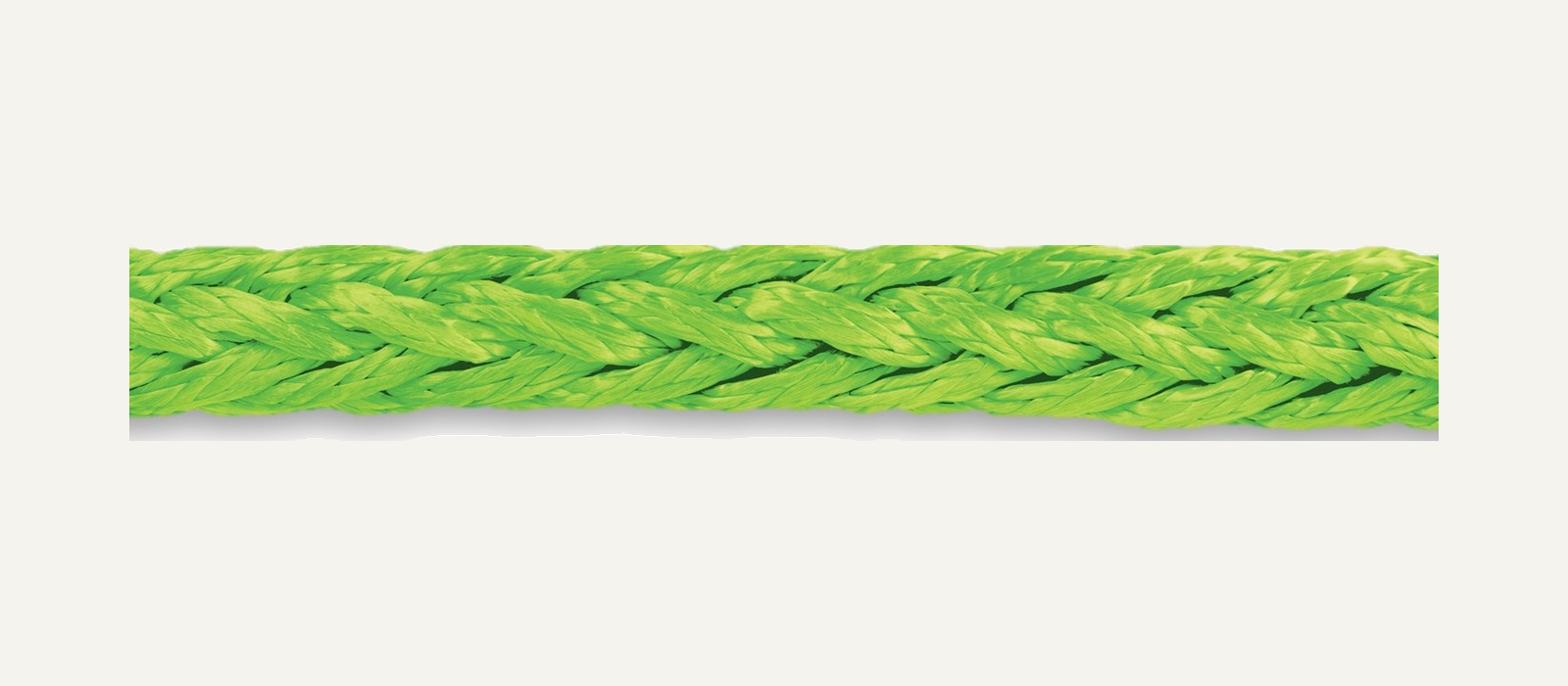

Plasma LoCo 12x12 Strand

The 12x12 construction addresses the most critical properties of the fibres to provide a very high strength translation efficiency for larger ropes, retaining all the features of standard Plasma with a reduced coefficient of friction.

Highest strength to weight ratio of any fibre
Low creep
Excellent UV & chemical resistance
Easy to splice
Safer than wire
High flex fatigue and abrasion resistance
Excellent durability

Enquire About This Product Back to Fibre Ropes

Specific Gravity.98*

Melting Point140°C

Critical Temp.65°C

Elongation at Break3%-4%

Floats / SinksFloats

UV ResistanceGood

Wet AbrasionSuperior

Dry AbrasionSuperior

This design allows for long lay lengths, making rope that is more flexible for bending applications, easy to inspect, and can be quickly spliced using Jeyco's recommended splicing techniques for low co-efficient of friction ropes.

Plasma rope has the added advantage of DNV and ABS class type approval throughout its range.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1 5/8″	40	5″	98	132	147
1 3/4″	44	5 1/2″	117	142	158
2″	48	6″	136	161	178
2 1/8″	52	6 1/2″	162	194	216
2 1/4″	56	7″	182	218	242
2 1/2″	60	7 1/2″	220	240	267
2 5/8″	64	8″	249	270	300
2 3/4″	68	8 1/2″	278	299	333
3″	72	9″	319	354	393
3 1/8″	76	9 1/2″	350	386	428
3 1/4″	80	10″	388	426	474
3 1/2″	84	10 1/2″	443	503	559
3 5/8″	88	11″	482	567	630
3 3/4″	92	11 1/2″	510	598	664
4″	96	12″	586	690	766
4 1/8″	100	12 1/2″	679	736	818
4 1/4″	104	13″	765	770	856
4 1/2″	108	13 1/2″	789	829	921
4 5/8″	112	14″	812	853	948
4 3/4″	116	14 1/2″	873	874	971
5″	120	15″	902	939	1043
5 1/8″	124	15 1/2″	978	1004	1115
5 1/4″	128	16″	1046	1069	1187
5 1/2″	132	16 1/2″	1114	1133	1259
5 5/8″	136	17	1210	1198	1331
5 3/4″	140	17 1/2″	1296	1262	1403

Other sizes available on request. Contact us to confirm current lead times and pricing.
