Buoyancy

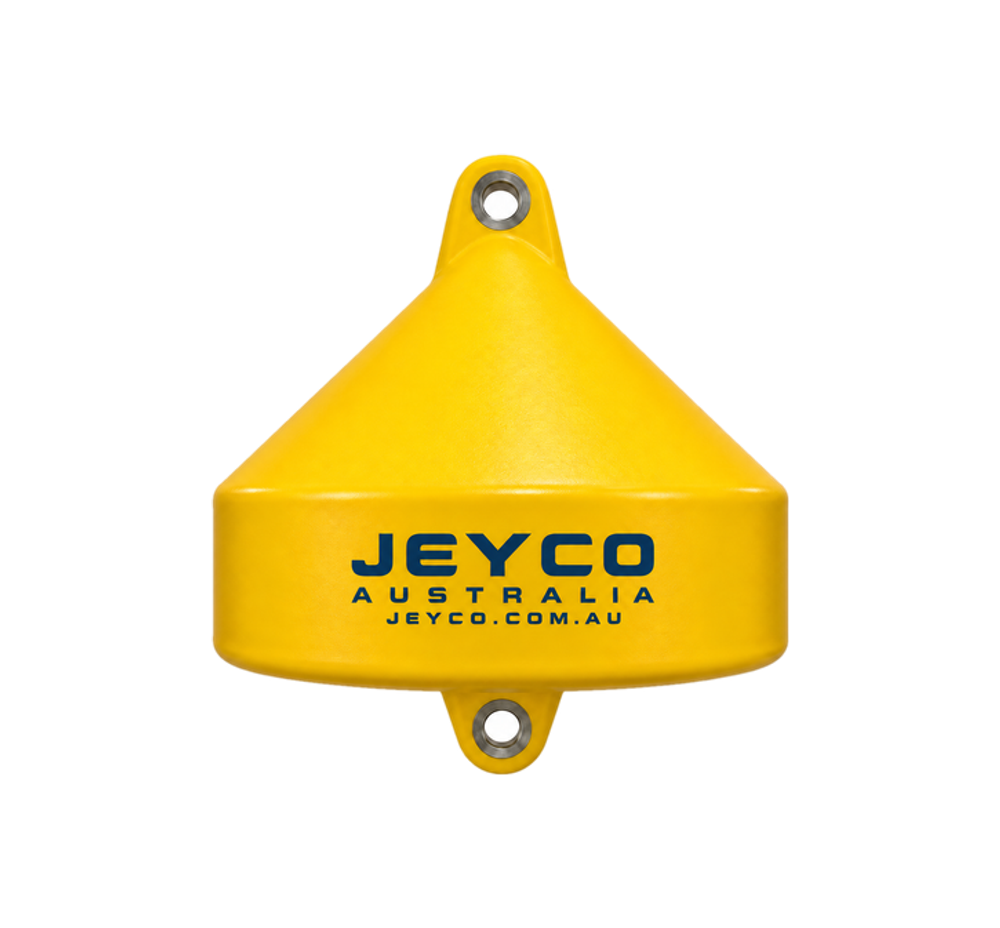

SEA Mooring Buoys

Jeyco supplies a range of SEA class mooring buoys with reserve buoyancy between 80kg and 330kg. They are rotationally moulded as a one-piece seamless buoy with Polyethylene walls and 2 pack marine grade foam filling giving them a high strength to weight ratio.

Structural tie-bar rated for loads
Fully enclosed hull
High strength and durability design, capable of 20+ year life expectancy
100% Western Australian made
Can be foam filled to mitigate the risk of sinking if punctured
Available in multiple colours on request

Enquire About This Product Back to Buoyancy & Navigational Aids

The buoys and tie-bars are manufactured in Western Australia allowing a quick turnaround time and high level of quality control. The PE rota-moulded design is virtually maintenance free and are considered “collision favourable” compared to steel buoys. These buoys are well suited for recreational and commercial mooring applications.

Sizing & Specifications

Dimensions & Ratings

SEA80 & SEA170 (left) and SEA330 (right), ref. diagram for A to I

Part Number	Total Buoy Weight (Kg)	Reserve Buoyancy (Kg)	Chain Capacity (Kg)	Tie Bar WLL (Tonnes)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	Green Pin Shackle to Suit
SEA80	11	69	44	16.2	615	555	350	150	140	640	150	34	36	12T
SEA170	20	151	94	16.2	800	720	480	190	170	840	150	34	36	12T
SEA330	64	266	182	12.8	1190	984	500	180	650	1100	100	25	44	13.5T

Other sizes available on request. Contact us to confirm current lead times and pricing.
