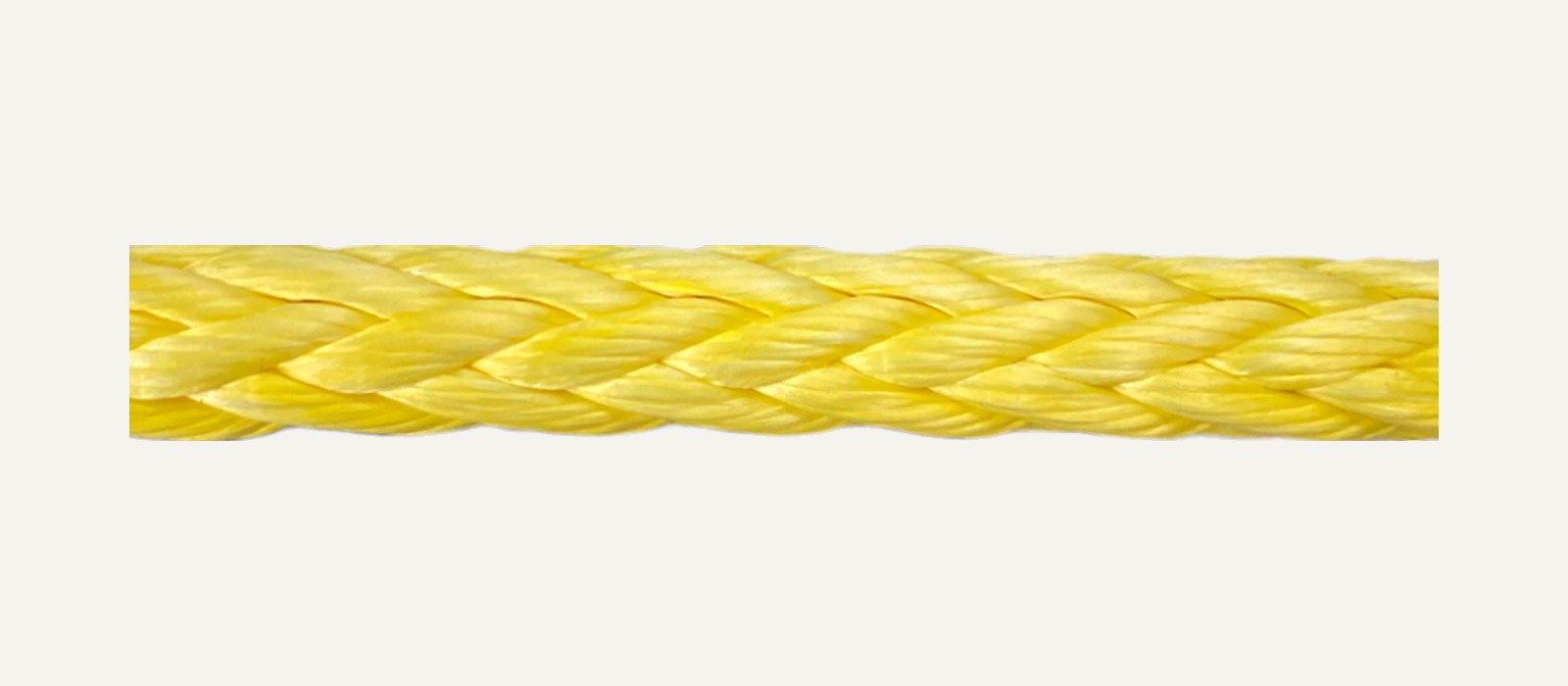

Texteel 12 Strand HMPE

Texteel is manufactured from High Modulus Polyethylene (HMPE), designed to meet the need for high load applications where exceptionally low weight and flexibility are required in a cost driven environment.

Highest strength to weight ratio of any fibre
Low creep
High UV & chemical resistance
Very low elongation
Safer than wire
Easy to splice
Excellent durability
Class and Meg4 certification available upon request

Enquire About This Product Back to Fibre Ropes

Specific Gravity.97*

Melting Point140°C

Critical Temp.70°C

Elongation at Break3.8%

Coefficient of Friction0.09-0.12*

Floats / SinksFloats

UV ResistanceGood

Wet AbrasionSuperior

Dry AbrasionSuperior

Texteel has a specially formulated coating system to maintain flexibility for ease of handling and inspections, whilst not compromising on strength or durability. Texteel is resistant to kinking, maintains strength around tight bend radius and has low recoil making it safer than traditional steel rigging products.

Texteel has the added benefit of being a Meg4 compliant product and can be produced with class certification upon request.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1/4″	6	3/4″	2.1	3.3	3.7
5/16″	8	15/16″	3.8	5.9	6.5
3/8″	10	1 1/8″	4.8	8.8	9.8
1/2″	12	1 1/2″	8.6	13.1	14.6
9/16	14	1 3/4″	11.5	17.4	19.4
5/8	16	2″	15.0	22.9	25.5
3/4	18	2 1/4″	18.4	26.6	29.6
13/16″	20	2 1/2″	22.9	32.1	35.7
7/8″	22	2 3/4″	26.7	36.7	41.8
1″	24	3″	31.7	45.0	49.9
1 1/16″	26	3 1/4″	37.2	52.3	58.1
1 1/8″	28	3 1/2″	43.0	59.6	66.3
1 1/4″	30	3 3/4″	48.7	56.2	72.4
1 5/16″	32	4″	55.8	72.5	80.5
1 3/8″	34	4 3/8″	62.1	79.8	88.7
1 1/2″	36	4 1/2″	68.7	87.2	96.8
1 9/16″	38	4 3/4″	76.4	96.4	107.0
1 5/8″	40	5″	85.9	104.6	116.2
1 3/4″	44	5 1/2″	103.1	124.8	138.6
2″	48	6″	119.3	145.0	161.1
2 1/8″	52	6 1/2″	140.6	170.7	189.6
2 1/4″	56	7″	162.3	197.3	219.2
2 1/2″	60	7 1/2″	185.9	225.8	250.8
2 5/8″	64	8″	210.0	255.1	283.4
2 3/4″	68	8 1/2″	238.7	290.0	322.1
3″	72	9″	268.5	326.7	362.9
3 1/8″	76	9 1/2″	300.7	366.2	406.7
3 1/4″	80	10″	332.9	405.6	450.6
3 1/2″	84	10 1/2″	365.1	445.1	494.4
3 5/8″	88	11″	397.4	474.5	527.0
4″	96	12″	472.5	552.5	613.7

Other sizes available on request. Contact us to confirm current lead times and pricing.
