HMPE Rope · Class Cert.

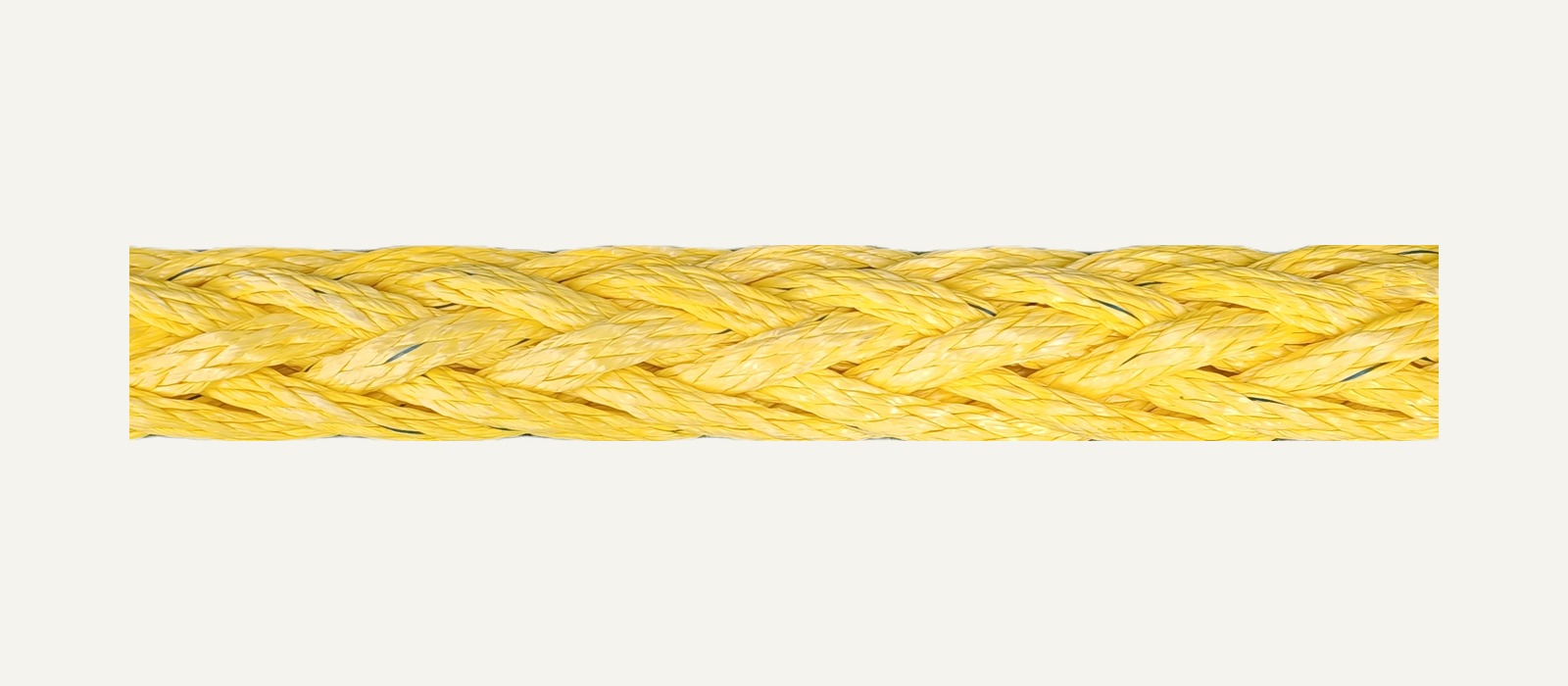

Texteel 12x12 Strand HMPE

Texteel 12x12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand, optimised for demanding applications such as tug and barge towing and mooring lines.

12x12 construction for higher abrasion resistance
Repairable primary strands
Highest strength to weight ratio of any fibre
Low creep
Class and Meg4 certification available upon request
High UV & chemical resistance
Safer than wire
Very low elongation
Easy to splice

Enquire About This Product Back to Fibre Ropes

Specific Gravity.97*

Melting Point140°C

Critical Temp.70°C

Elongation at Break3.8%

Coefficient of Friction0.09-0.12*

Floats / SinksFloats

UV ResistanceGood

Wet AbrasionSuperior

Dry AbrasionSuperior

This design has long lay lengths, making the rope more flexible for bending applications, easy for inspection and handing, and can be quickly spliced using standard 12 strand splicing techniques.

Texteel has the added benefit of being a Meg4 compliant product and can be produced with class certification upon request.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1 5/8″	40	5″	92	111	123
1 3/4″	44	5 1/2″	108	137	152
2″	48	6″	148	174	193
2 1/8″	52	6 1/2″	172	202	224
2 1/4″	56	7″	215	251	279
2 1/2″	60	7 1/2″	221	257	285
2 5/8″	64	8″	246	284	315
2 3/4″	68	8 1/2″	271	311	345
3″	72	9″	320	365	406
3 1/8″	76	9 1/2″	345	392	435
3 1/4″	80	10″	369	417	463
3 1/2″	84	10 1/2″	461	519	567
3 5/8″	88	11″	492	550	611
4″	96	12″	575	636	707

Other sizes available on request. Contact us to confirm current lead times and pricing.
