Thimble
Tubular Thimbles

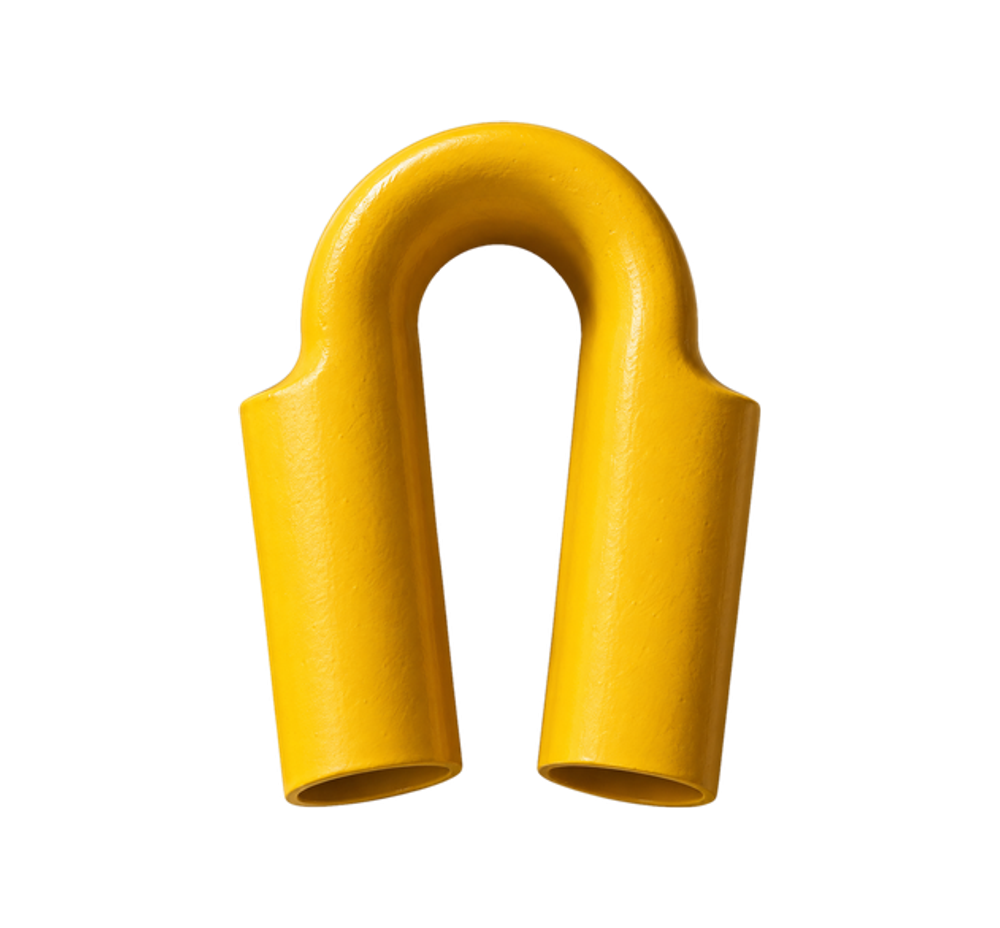

Yellow painted tubular thimbles, sized to suit rope from 32mm to 72mm, with a gusseted variant also available.
Yellow painted tubular thimbles, sized to suit rope from 32mm to 72mm, with a gusseted variant also available.

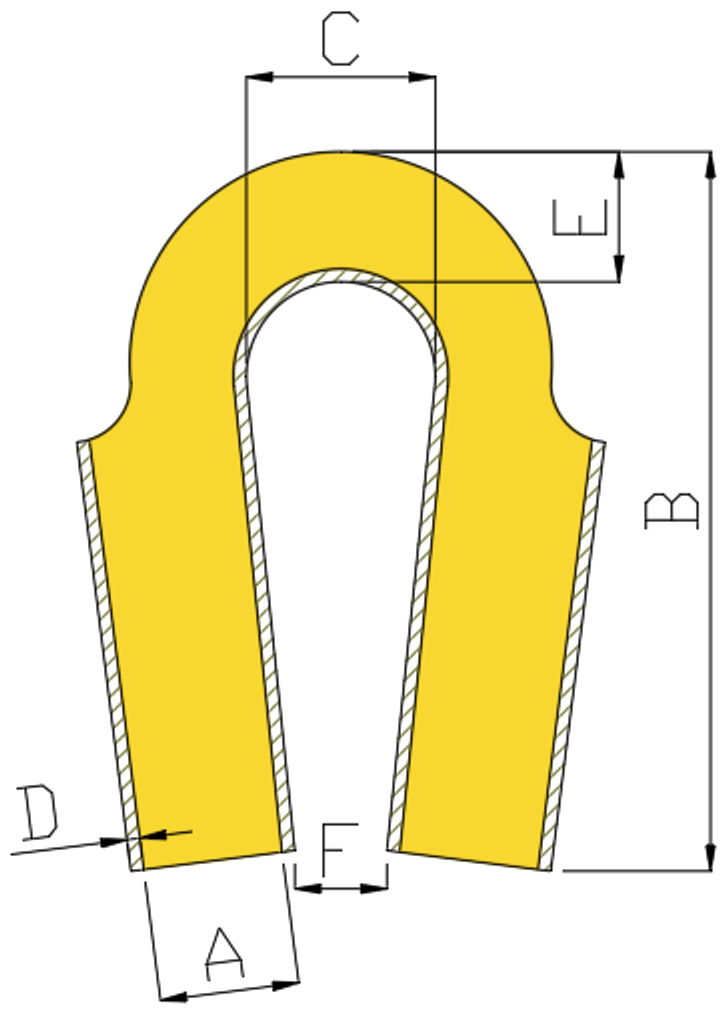

Ref. diagram for A to F
| Part Number | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | To Suit Rope Size |
|---|---|---|---|---|---|---|---|
| JTT32 | 40 | 212 | 70 | 7 | 30 | 40 | 32mm |
| JTT36 | 45 | 228 | 70 | 7 | 33 | 45 | 36mm |
| JTT40 | 50 | 255 | 75 | 7 | 34 | 50 | 40mm |
| JTT44 | 55 | 268 | 80 | 7 | 34 | 55 | 44mm |
| JTT52 | 60 | 270 | 100 | 7 | 36 | 60 | 52mm |
| JTT56 | 70 | 292 | 100 | 7 | 42 | 70 | 56mm |
| JTT60 | 75 | 315 | 125 | 7 | 44 | 75 | 60mm |
| JTT64 | 80 | 335 | 150 | 10 | 49 | 80 | 64mm |
| JTT72 | 85 | 360 | 150 | 10 | 52 | 85 | 72mm |
Other sizes available on request. Contact us to confirm current lead times and pricing.
Tell us what you need and our team can assist with product selection, specifications & supply.
