Stranded · Composite

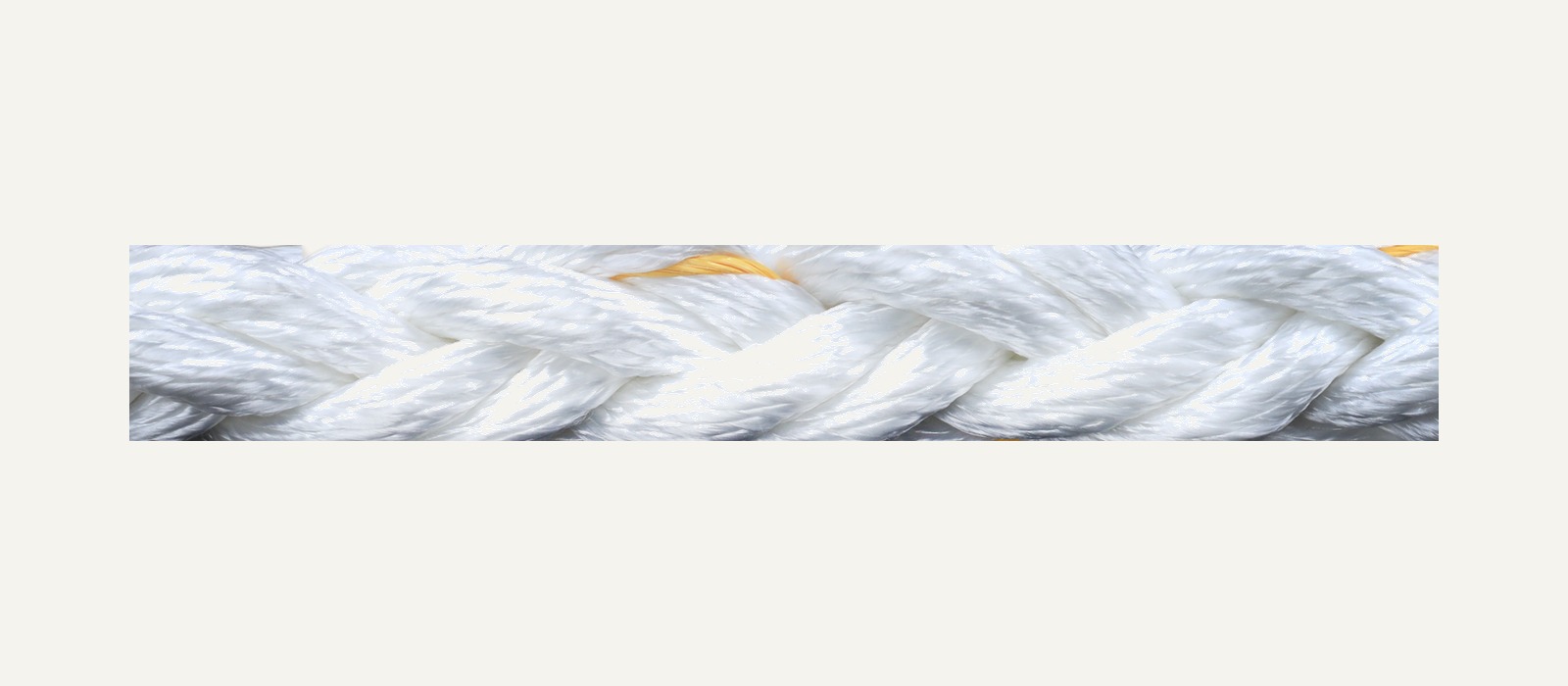

X2 Ultra 8 Strand

X2 Ultra 8 Strand Rope is a composite fibre balanced construction made from high tenacity polyester and X2 yarn, with excellent shape retention, good abrasion resistance, torque-free and chemically inert.

High strength to weight ratio
High abrasion and UV resistance
Chemically inert
Good shock absorption
Perfect for towing and mooring applications
Balanced construction

Enquire About This Product Back to Fibre Ropes

Specific Gravity1.13*

Melting Point140°C

Critical Temp.65°C

Elongation at Break18-20%

Floats / SinksSinks

UV ResistanceGood

Wet AbrasionExcellent

Dry AbrasionExcellent

The rope is ideal for all marine applications, offering a traditional 8 strand construction that makes inspections and splicing easy.

* value based on data supplied by the fibre manufacturer for new, dry fibre.

Sizing & Specifications

Dimensions & Ratings

Nominal Dia. (Inch)	Nominal Dia. (MM)	Size Circ.	Approx. Weight (Kg/100m)	Min. Tensile Spliced (Te)	Min. Tensile ISO Unspliced (Te)
1 1/8″	28	3 1/2″	44	17.9	19.9
1 5/16″	32	4″	56	22.5	25.0
1 1/2″	36	4 1/2″	72	27.9	31.0
1 5/8″	40	5″	89	32.9	36.5
1 3/4″	44	5 1/2″	108	41.9	46.5
2″	48	6″	128	52.7	58.5
2 1/8″	52	6 1/2″	150	61.2	68.0
2 1/4″	56	7″	172	70.2	78.0
2 1/2″	60	7 1/2″	199	80.1	89.0
2 5/8″	64	8″	225	92.7	103.0
2 3/4″	68	8 1/2″	254	103.1	114.5
3″	72	9″	285	113.4	126.0
3 1/8″	76	9 1/2″	318	124.7	138.5
3 1/4″	80	10″	370	141.3	157.0
3 5/8″	88	11″	500	173.7	193.0
4″	96	12″	598	209.7	233.0
4 1/4″	104	13″	700	242.1	269.0
4 5/8″	112	14″	814	270.0	300.0
5″	120	15″	932	308.9	343.2

Other sizes available on request. Contact us to confirm current lead times and pricing.
